Runtime View

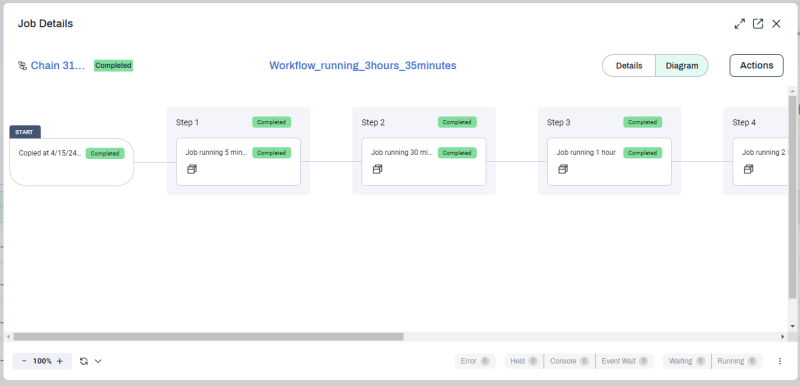

If you click a Workflow call in the Monitor screen, the Runtime View for that Workflow call displays. You can use this view not only to view Job Calls and Workflows that have already executed, but also Job Calls and Workflows as they are still executing.

The diagram in this view is similar to the Workflow Editor, but serves a different purpose. The Runtime View updates in real time as a Workflow executes. It also provides detailed information about Parameter values and Job Notes.

Actions Menu

The Actions button displays the same context menu that you can see by right-clicking on a Workflow in the Monitor screen. You can use this menu to do a variety of things, including rerunning the Workflow.

Detail Views

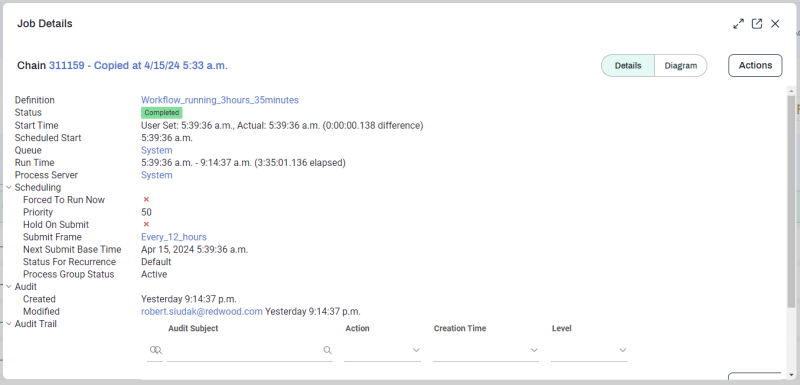

If you click a Workflow, Job Call, or Step, a Detail View overlay displays. This lets you view all available information about each component of a Workflow without having to close the Runtime View.

You can also view a full-size Detail View for the Workflow itself by switching from Diagram to Details.

Tooltips

If you hover over the name of a Workflow, Job Call, or Step, a tooltip displays, with the following information:

• Job ID

• Status badge

• Creation date

• Description

Job Notes

To add a Job Note to a Workflow call or Job call, hover over it and click the icon. In the overlay that displays, enter the Job Note text, then click Save.

Parameter Values

To view Parameter values in real time, hover over a Job call and click . A Parameters overlay displays, with a list of the Parameter values used by that Job Call.

Filters

The controls at the bottom right let you filter the Objects shown in the diagram based on their status. The button to the right of the filters displayed lets you choose additional statuses to filter by.
