Monitoring Dashboard Screen

The Monitoring Dashboard screen displays real-time information on system health for Job Definitions, Secure Gateways, action work (for example, work performed for Job actions, Triggers, and Time Window calculations), and a number of Job Servers and Queues. It includes the following tabs:

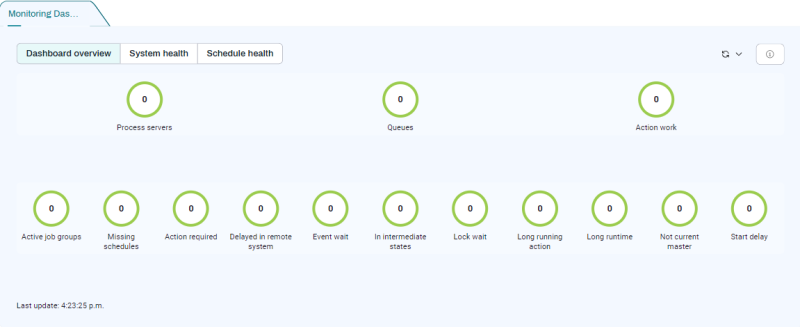

  1. Dashboard overview: Displays all monitors.
  2. System health: Displays Process servers, Queues, and Action work monitors.
  3. Schedule Health: Displays all process-related monitors.

Note: For information on customizing the Monitoring Dashboard screen, see Customizing the Monitoring Dashboard.

System Health

System health monitors display the status of Job Servers, Queues, and action work (for example, work performed for Job actions, Triggers, and Time Window calculations).

Note: To control which Job Servers and Queues are monitored, use the Monitor On Dashboard property.

  • A Queue that is either held or closed (not served by any running Job Servers) counts towards the total number of action items.
  • A Job Server that is shut down counts towards the total number of action items.
  • Action work is counted in terms of concurrent action workers. By default, 50 to 74 concurrent action workers will cause this monitor to turn orange, and 75 or more will cause it to turn red.

Schedule Health

Schedule health monitors display problematic Jobs.

Note: To view in-depth documentation for each of these monitors, navigate to Configure > Automate > Scheduling Tools > Documents and look for DashboardHelp.

  • Active job groups: Active process schedules without currently scheduled processes
  • Missing schedules: Process groups that have a specific number of processes that missed their schedule (default 1).
  • Action required: Processes that have been in a state requiring manual intervention for a specific duration (default 1 day).
  • Delayed in remote system: Processes that have been delayed in a remote system for a specific duration (default 1 minute).
  • Event wait: Processes that have been in EventWait status for a specific duration (default 7 days).
  • In intermediate states: Processes that have been in intermediate states for a specific duration (default 20 seconds).
  • Lock wait: Processes that have been in LockWait status for a specific duration (default 1 hour).
  • Long running action: Processes that have been subject to long running actions or triggers (default 1 minute).
  • Long runtime: Processes that have been running for specific duration (default 1 day).
  • Not current master: Processes that are not using the latest version of their Job Definitions.
  • Start delay: Processes that have seen their start delayed by a specific duration (default 20 seconds).

System Health Configuration

Monitor Default
Action work Red=75, Orange=50

Schedule Health Configuration

Monitor Default Range
Active job groups 1 Min: 1 Max: 1000
Missing schedules 1 Min: 1 Max: 1000
Not current master 1 Min: 1 Max: 1000
Action required 1d Min: 1h Max: 30d
Delayed in remote system 60s Min: 1s Max: 1d
Event wait 7d Min: 1h Max: 30d
Intermediate states 20s Min: 1s Max: 1d
Lock wait 1h Min: 1s Max: 1d
Long running action 60s Min: 1s Max: 1d
Long runtime 1d Min: 1h Max: 30d
Start delay 20s Min: 1s Max: 1d

Custom Monitors

You can add your own monitors to the Monitoring Dashboard. Before you do so, though, you must enable the Custom Health feature.

Enabling Custom Health

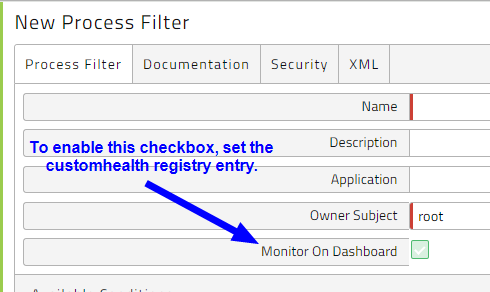

To enable the Custom Health feature, add or edit the /configuration/jcs/monitoringdashboard/customhealth/enabled registry entry and set its value to true. Once you have done so, the Monitor On Dashboard check box becomes available for Job Filters.

When the Custom Health feature is enabled, the Custom health button displays in the Monitoring Dashboard.

Adding Monitors to the Custom Health Dashboard

To add a custom monitor to the Monitoring Dashboard:

  1. Make sure the /configuration/jcs/monitoringdashboard/customhealth/enabled registry entry is set to true (see above).

  2. Navigate to an overview (for example, the Monitor screen).

  3. Right-click in the list and choose Filter > New Filter from the context menu.

  4. Enter a name.

  5. Check Monitor on Dashboard. If you do not see this check box, make sure you set up the registry entry correctly.

  6. Configure the filter.

  7. Click Save & Close.

  8. Navigate to Configure > Control > Monitoring Dashboard. The new monitor does not display yet.

  9. Click and choose User Configuration. The User Configuration screen displays.

  10. Scroll down to the Custom Health Options area and drag the new custom monitor from the Available side to the Selected side.

  11. Click Save.

  12. Click again and choose Global Configuration. The Global Configuration screen displays.

  13. Expand the Custom Health Configuration area and set threshold values for Red and Orange. When the number of processes that matches the filter reaches the Orange value, the monitor will turn orange. If the number of processes that matches the filter reaches the Red value, the custom monitor will turn red.

  14. Click Save.

  15. Click Custom health. Your custom monitor should display.

Custom Monitor Example

Assume you have a number of resource-intensive processes that need to run in a specific Queue. Because that Queue can handle only six concurrent processes, you would like to create a custom health monitor for it.

When creating the filter for this situation, you could:

  1. Select Where the process is in Queue, then click the blue Queue text and add the Queue.
  2. Select where the process has Status, choose Status in the detail pane, and select Running.
